H 145 Helicopter

[container padding=“padding-bottom“]

New Standard in the World of
Helicopter Simulation

Our goal is to provide the highest level of realistic flight experiences in our Level D Simulators, where we can put flight crews into perilous situations that could never be tried in actual aircrafts.

The value of such ultra-realistic flight training for pilots cannot be overestimated. Operators from various mission profiles, like HEMS, law enforcement, VIP services, or offshore operators benefit from the innovative system.

The H145 Level D simulator has a full six-degrees-of-freedom electric motion and vibration system. The field of view out-of-window direct projection display measures 240 degrees horizontally by 80 degrees vertically, with the moving imagery being directly projected using two-channel high-definition LED video projectors. With an intuitive on-board instructor operating station (IOS), sophisticated briefing and debriefing stations, which allow creating and pre-programming of training scenarios, a wide rear cabin for fast roll-on/roll-off of cockpit interchanges and mission kits, the new system provides maximum flexibility.

Reiser H145 Full-Flight Simulators
are Level D Qualified by

German Federal Aviation Office
(LBA Luftfahrt-Bundesamt)

Norwegian Civil Aviation Authority

Finnish Transport Safety Agency (Trafi)

Administración Nacional de Aviación Civil
(ANAC Argentina)

[youtube video-url=“https://www.youtube.com/watch?v=ohkmI8WpaDE“ image=“http://www.reiser-insight.com/wp-content/uploads/2019/11/reiser-simulator-h145-video-thumb-1.jpg“ title=“GO FLY WITH US!“]


[container background=“gray“]

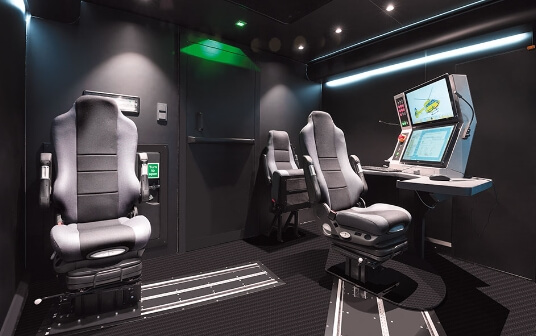

Unique 3rd Crew Member Station

Our 3rd Crew Member Station is located in the aft-cabin behind the cockpit inside the dome. The unique solution allows the winch operator to look out of the helicopter simulator by means of virtual augmented reality. The Reiser mixed reality device enables the Medical Crew Member to perform all his mission duties from clearing the rear part of the helicopter when landing in confined areas as well as observing any hand signals given by the Rescue Man attached to the rope of the helicopter.

The Instructor Operating Station as well as two tablet computers in the dome provide intuitive control of the simulated Rescue Man such as hand signals and movements on the ground via a touch screen.

Training is improved by a night vision mode that simulates the typical enhanced view through a Night Vision Goggle (NVG) and further by a torch, equipped with a tracker system, projecting a simulated light beam to illuminate landing and accident site.

The simulated light beam is visible for both MCM (through MR goggle), Pilot and Co-Pilot in the dome which provides most realistic training during night missions. The MCM Station provides next generation training during Rescue Man / Underslung Maneuvers, Search and Rescue Missions, Take-Off and Landing Maneuvers in confined areas, paired with an immersive benefit for crew coordination.

[youtube video-url=“https://www.youtube.com/watch?v=Kn-7k1Or9Yg“ image=“http://www.reiser-insight.com/wp-content/uploads/2020/01/video_flight-ambulance-1.jpg“ title=“GO FLY WITH US!“]



The REISER H145 FFS – Tablet IOS and Seamless Replay

[youtube video-url=“https://youtu.be/r5Fe-gI5oUg“ image=“http://www.reiser-insight.com/wp-content/uploads/2019/10/video_tablet-1.jpg“ title=“GO FLY WITH US!“]

Each and every training maneuver is captured including the cockpit displays in high resolution, all scenario settings and pilot inputs.

The data is available for instant replay in the dome or for subsequent in-depth analysis using the virtual cockpit displays & outside view of any of the Debriefing Stations.

During training the instructor is always free to join his trainee in the cockpit and continue to control the session from his wireless tablet IOS.




Technical Features

Maximum fidelity

  • Full-Flight Simulator up to Level D (EASA, FAA, ICAO).
  • Full 6 DoF electric motion and electric vibration system.
  • Intuitive on-board IOS with briefing, debriefing and scenario creation functionalities.
  • Direct projection dome display 240° x 80° with dual channel LED projectors.
  • NVG stimulation supporting real F4949 Series and others.
  • Worlwide database with customer specific high resolution insets.
  • Several Level D compliant airports and more than 25.000 generic airports.
  • Computer generated airborne, ground, naval and human entities.
  • OSM street network with moving traffic.

Maximum flexibility

  • Wide rear cabin for mission kits.
  • Roll-on/Roll-off cockpit interchange in less than one hour.

Maximum connectivity

  • HLA/DIS networking for distributed simulation.
